Sewer Camera Inspection in Fords, NJ
A sewer camera inspection in Fords, NJ answers the critical question for 1920s-50s pipe: blockage or collapse? The camera shows whether the line holds intact pipe with a clearing-needed obstruction, or broken clay and deformed Orangeburg that only replacement will fix.

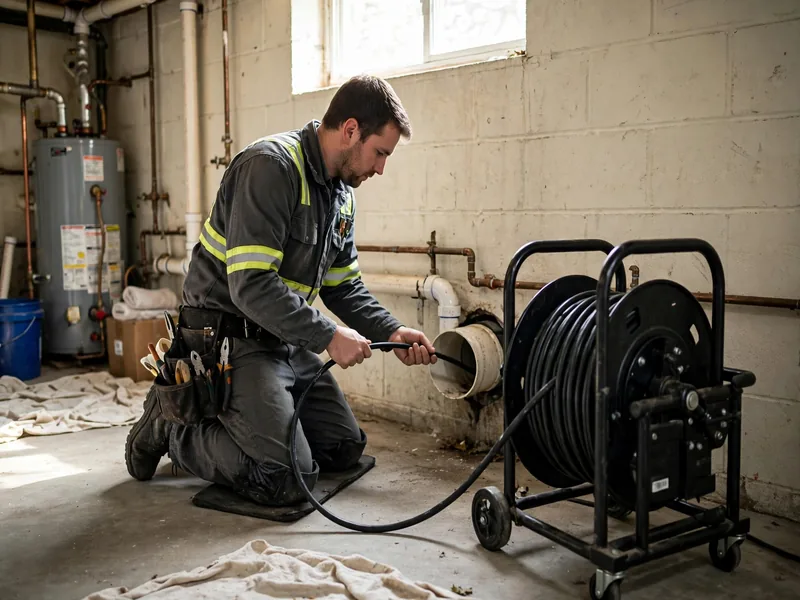

The procedure is the industry standard, tuned by local knowledge: a waterproof camera on a supple push rod is fed into the lateral via cleanout or interior access, beaming live images of the pipe walls while its sonde emitter lets the technician stake each defect's location and depth at the surface. In Fords, the technician is watching for the specific failure signatures of the area's pipe eras — and the footage markers turn those signatures into a quotable, locatable plan.
Fords' housing geography matters. The business district along New Brunswick Avenue and the Woodbridge Center Mall to the east anchor the section, but the residential streets hold the sewer story: 1920s colonials with original clay, postwar ranches and capes from the tract years, and Heritage Lane-era townhomes on modern PVC. A camera inspection on the 1925 colonial and a camera inspection on the townhome are different investigations with different likely outcomes — which is why the inspection comes before the estimate, not after.
For Fords homeowners, the camera's greatest value is its ability to stop wasteful spending. Snaking a collapsed clay lateral or an Orangeburg line does not fix it; it rents temporary flow at full price. The camera shows the collapse or the Orangeburg directly, and that footage is the difference between paying for the right fix once and paying for the wrong fix repeatedly.
Collapse Versus Blockage: The Camera's Core Distinction
From the homeowner's perspective, a collapsed lateral and a blocked lateral feel identical: drains slow, then stop; backups follow. From the camera's perspective, they are unmistakable opposites. A blockage shows as material inside an intact pipe — root masses, grease, scale, or debris with visible pipe walls around them. A collapse shows as the pipe itself destroyed: broken clay tile, soil pressing in, the camera unable to pass.
That distinction is the whole ballgame in Fords' 1920s-50s stock. A blockage in sound pipe calls for cleaning — targeted, effective, and far less costly than replacement. A collapse calls for replacement — and every dollar spent snaking a collapsed line is wasted, because the pipe cannot be cleared back into structural existence. Homeowners who have paid for two or three cleanings on a line the camera would have shown as collapsed have the most expensive possible lesson in why inspection comes first.
The camera also catches the in-between cases that define good decision-making: a partially collapsed section that might survive with a spot repair, a severely offset joint that cleaning cannot fix but a sectional replacement can, a line that is blocked and structurally failing at once. Each finding appears with a footage reading, so the repair plan targets the actual defect at its actual location.
Orangeburg in the Tract Years: The Camera's Identification
Some of Fords' 1940s-60s tract homes may carry Orangeburg pipe — the bituminous fiber pipe used briefly mid-century — and the camera is the definitive way to identify it. On screen, Orangeburg is unmistakable: interior walls that appear blistered, deformed, delaminated, or collapsed inward, a pipe that looks melted rather than built. No other common pipe material looks like it.
The identification matters because Orangeburg changes the entire decision tree. Clay tile with isolated defects can be maintained; Orangeburg cannot be durably repaired by any method. A homeowner who learns from the camera that their tract home has Orangeburg stops budgeting for cleanings and starts planning for replacement — and stops being surprised when cleanings fail faster each time.
The camera also documents Orangeburg's progression. Early-stage deformation may still pass flow; advanced delamination blocks it. The footage shows where the line stands on that spectrum, which helps time the replacement: a deforming-but-flowing Orangeburg line can be scheduled; a collapsed one cannot.
Root Intrusion and Joint Failure in the 1920s Stock
Fords' 1920s-30s colonials and capes carry clay-tile laterals now a century old, and the camera's tour of these lines shows what a century does to rigid pipe. Mortar washed from joints decades ago. Sections offset by a hundred freeze-thaw cycles. Roots — from the mature trees that shade these older streets — entering at every weakened joint and growing into fibrous mats.
The camera grades the intrusion, and the grading drives decisions. Fine root hairs at scattered joints: maintenance territory, with targeted cleaning and monitoring. Dense mats at most joints with visible displacement: replacement territory, because cleaning buys months while the roots keep widening the joints they entered through.
Freeze-thaw deserves emphasis in Fords. New Jersey's winters heave the soil around these shallow, rigid laterals every year, and a century of that movement accumulates. The camera shows the result as stepped joints — one clay section sitting higher than its neighbor — each step a lip that catches solids and starts the next blockage. Nor'easter rains then surcharge these weakened lines, and summer deluges back up into basements where foundation drains tie to the sewer. The camera, run in dry weather, maps every weakness before the next storm tests it.
Access in Fords' Mixed Housing
The section's housing mix means access varies by property. The 1920s-30s colonials typically lack exterior cleanouts — interior access through basements, which most pre-1970 Fords homes have, via floor drains or pulled toilets. Postwar ranches may have cleanouts or slab constraints requiring the toilet-pull method. Modern townhomes generally have cleanouts as standard.
The inspection traverses from the access point to the public sewer, with the technician narrating the pipe's story: material transitions, joint conditions, roots, offsets, bellies, water level, and the tie-in at the main. The sonde locator tracks the camera throughout, marking defect locations and depths on the surface — critical information in a section where laterals run beneath driveways, mature landscaping, and the occasional addition.
Homeowners should watch the live feed and confirm they will receive the recording. In Fords, where the collapse-versus-blockage question is so common, seeing the answer on screen — intact pipe with a blockage, or destroyed pipe that no cleaning can fix — removes all doubt and all sales pressure. The footage is the diagnosis; everything after is planning.
Planning the Fix: What Follows the Footage
When the camera shows a blockage in sound pipe, the path is maintenance: professional cleaning targeted at the exact locations the footage identified, with a re-inspection interval appropriate to the pipe's age. The recording becomes the baseline for comparing future inspections.
When the camera shows isolated structural defects — a single collapsed section, one severe offset, a short Orangeburg run — sectional repair or trenchless renewal addresses the bad segment. The footage's location data keeps the work surgical, preserving driveways and landscaping that full-length replacement would destroy.
When the camera shows systemic failure — the century-old clay line with failed joints throughout, or Orangeburg in advanced deformation — the honest verdict is full replacement, and the camera's service is preventing good money from chasing a bad pipe. Trenchless pipe bursting suits Fords' established streets, pulling seamless new pipe through the old path with minimal surface disruption. Every contractor bids from the same recording, which keeps quotes comparable and the homeowner in control of the decision.
Local Insight
Fords' camera inspections revolve around a single high-stakes distinction: blockage versus collapse in the section's 1920s-50s pipe stock. The 1920s-30s colonials and capes — a documented 1925 Woodland Avenue build is representative — carry original clay-tile laterals now a century old, showing root intrusion at long-failed joints and freeze-thaw offsets accumulated over a hundred winters. The 1940s-60s tracts add possible Orangeburg, which the camera identifies by its blistered, deformed interior and which ends all repair debate. Modern townhome infill on PVC needs only blockage diagnosis. Across all of it, the camera's footage markers convert findings into located, quotable defects — and its core value is economic: it stops homeowners from paying to snake collapsed clay or deformed Orangeburg, redirecting every dollar toward the fix the footage proves is needed. In a section where the oldest and newest pipes in the township sit blocks apart, the camera is what keeps each home's sewer decisions matched to its actual pipe.
Contact Us Now
One call connects you with a local sewer professional serving Perth Amboy, NJ — day or night.
Contact Us Now: (833) 713-2101Frequently Asked Questions
My drains back up repeatedly. How do I know it is not just a stubborn clog?
You cannot know from symptoms — a collapse and a clog feel identical from inside the house. The camera distinguishes them directly: a clog shows as material inside intact pipe walls, while a collapse shows the pipe itself broken and impassable. If you have paid for multiple cleanings without lasting relief, the camera is the step that reveals whether cleaning was ever capable of fixing the problem.
The plumber said my line might be Orangeburg. What now?
Confirm it with a camera before planning anything. Orangeburg has a distinctive blistered, deformed appearance on video that technicians identify immediately. If confirmed, stop spending on cleanings — Orangeburg cannot be durably repaired — and get replacement quotes based on the footage. If the camera shows clay instead, the maintenance-versus-replacement decision proceeds on the clay's actual condition.
Can a camera inspect through a line full of roots?
Usually yes, though heavy root masses can block the camera's passage — which is itself diagnostic information about the severity. Technicians may run a preliminary clearing to allow the camera through, then inspect the exposed pipe walls to assess the joints the roots entered through. The combination shows both the intrusion and the structural condition behind it.
My home has no cleanout. Can you still inspect?
Yes. Most of Fords' pre-1970 homes lack exterior cleanouts, and technicians routinely inspect through basement floor drains, laundry standpipes, or a temporarily pulled toilet. Basements are common in the section's older stock, which keeps interior access workable. Confirm the access plan when booking so the crew arrives prepared.
Should I inspect before repaving my driveway?
Strongly recommended. Fords laterals commonly run beneath driveways, and a camera inspection beforehand reveals the line's condition and exact path. Discovering a failing lateral after fresh asphalt is laid means tearing up new paving; discovering it before means coordinating the work once. The footage also documents depth for the paving contractor.
How often should my 1920s clay lateral be inspected?
Every two to three years once the line is past eighty years old, plus any time symptoms recur. At a century, clay joints continue to shift with each freeze-thaw cycle and roots keep advancing. Regular footage creates a deterioration timeline — the evidence that times a planned replacement before the line fails as an emergency.
