Sewer Camera Inspection in Avenel, NJ
A sewer camera inspection in Avenel, NJ identifies whether your lateral is clay, Orangeburg, or PVC — and shows root intrusion, offsets, and bellies at each joint. In these mid-century subdivisions, the footage decides between targeted cleaning and full replacement, with every defect located by distance.
Avenel's housing tells a layered story. The residential core grew up around mid-century subdivisions of capes and ranches, with a median home built around 1978 and many homes dating to the middle of the 20th century. Around the Avenel train station, newer transit-oriented development has added modern buildings, while former industrial zones near the rail corridor — the old General Dynamics site and the Ford plant that operated from 1928 to 2004 — left behind complex legacy utility runs. That mix means two neighboring homes can have completely different sewer situations: one on original clay tile, the next on PVC from a later replacement.

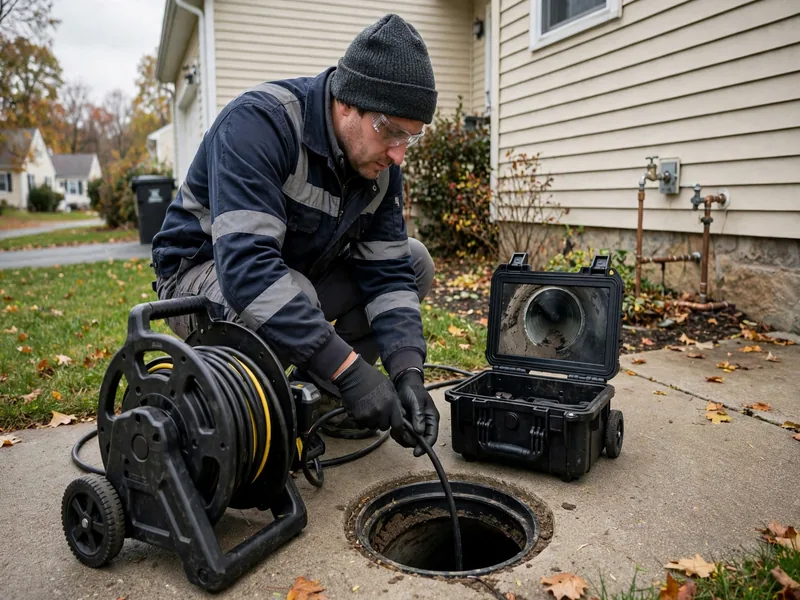

A camera inspection cuts through that uncertainty. The technician feeds a waterproof camera through the lateral from a cleanout or interior access point, watching live video of the pipe's interior while a sonde transmitter marks the camera's location and depth above ground. Every joint, crack, root mass, belly, and material change appears on screen with a footage reading, turning a buried mystery into a documented, measurable record.
For Avenel homeowners, the inspection often becomes the decision point between two very different repair paths. A clay lateral with isolated root intrusion at a few joints may only need targeted cleaning and monitoring. The same line with widespread joint failure or a collapsed section points toward trenchless pipe bursting or full replacement. Without the camera, contractors are estimating from symptoms; with it, they are quoting from evidence.
Why the Clay-to-PVC Transition Era Makes Cameras Essential
Avenel's subdivisions were built across the decades when sewer materials were changing. Clay tile dominated through the 1960s; PVC took over in the 1970s and 1980s. Many homes here have laterals from the transition years, and some have hybrid lines — clay from the house to partway down the yard, PVC the rest of the way — where a previous owner replaced only the failed portion. The camera shows exactly where those transitions are and how each material is performing.
This matters because the failure modes differ completely. Clay tile fails at its joints: roots enter, sections offset with freeze-thaw, and mortar crumbles. PVC fails differently — it is a flexible pipe that can belly if poorly bedded, and its joints can separate if the ground shifts, but it does not invite roots the way clay does. A camera inspection that reveals your line is clay to the curb calls for a different maintenance plan than one that shows PVC with a single separated joint.
Some 1950s and 1960s tracts in this era may also carry Orangeburg pipe — a bituminous fiber pipe used briefly mid-century that blisters and delaminates with age. The camera identifies Orangeburg by its distinctive deformed, blistered interior, and finding it usually ends the repair-versus-replace debate: Orangeburg has no durable repair, only replacement. That single identification can save a homeowner from paying for cleanings on a pipe that will never hold.
What the Camera Typically Finds in Avenel Laterals
In Avenel's mid-century stock, the camera's most frequent discovery is root intrusion at clay joints. The cape and ranch subdivisions here were landscaped with shade trees that are now sixty or seventy years old, and their root systems have had decades to find every clay joint. The footage shows fine roots fanning in at joints, progressing to dense mats in advanced cases. The camera's footage markers identify which joints are affected, so cleaning or repair targets the right spots.
Offset joints are the second signature finding. New Jersey's freeze-thaw winters heave the soil a fraction of an inch each year, and rigid clay sections shift independently. The camera reveals stepped joints where one section sits higher than the next, creating lips that catch solids. In PVC sections, the camera may instead show bellies — low spots where flexible pipe settled into poorly compacted trench backfill, holding standing water that the camera's light reflects off unmistakably.
Near the rail corridor and former industrial zones, the camera occasionally finds something else entirely: abandoned tap connections, unusual pipe materials, or laterals that take unexpected paths around long-buried structures. Legacy utility runs in these areas can complicate even a simple inspection, and the camera's locator becomes as important as its lens — mapping where the line actually runs before any digging is planned.
Signs It Is Time to Look Inside Your Line
The clearest signal is recurrence. A drain that has been snaked twice in twelve months and keeps slowing down is not being fixed; its symptom is being managed. Roots grow back through clay joints, scale re-forms in cast iron, and bellies refill with sediment. A camera inspection after the second recurrence shows whether the line needs cleaning, spot repair, or replacement — and stops the cycle of paying for temporary relief.
Multiple-fixture symptoms point to the lateral rather than a branch line: the basement floor drain overflows when the washing machine drains, the tub gurgles when toilets flush, or several drains slow simultaneously. In Avenel's ranch and cape floor plans, where fixtures share relatively short branch runs, these whole-house symptoms almost always mean the shared lateral is the problem, and the camera is the tool that finds where.
Other triggers are situational. Buying one of Avenel's mid-century capes? A pre-purchase camera inspection is inexpensive insurance against inheriting a failed lateral. Planning a driveway replacement or addition over the lateral's path? Inspect first, so you are not pouring concrete over a pipe that needs replacement. Noticing a persistently soggy strip in the yard or a sewage odor near a cleanout? The camera will show whether the line is leaking or simply venting normally.
How the Inspection Works in These Homes
Access in Avenel's housing stock is usually straightforward. Many homes have exterior cleanouts, particularly those built or renovated from the 1970s onward. Older colonials and capes with full basements offer interior access through floor drains or laundry standpipes, and a toilet can be temporarily pulled to reach the building drain when no other access exists. Ranch homes on slabs or crawlspaces may require the toilet-pull method, which adds some time but is routine.
The technician advances the push-rod camera slowly from the access point toward the public sewer, narrating the live feed: pipe material, joint condition, water level, roots, cracks, offsets, bellies, and the connection at the main. The sonde in the camera head broadcasts a signal that a receiver tracks from above ground, marking the lateral's path and the depth of each finding. Key defects get footage readings — their exact distance from the entry point — and surface marks so a repair crew can find them later.
Homeowners are encouraged to watch. Seeing a root mass or a collapsed section on the monitor removes all doubt about what the line needs, and the recording provided afterward supports second opinions and comparable contractor quotes. A typical residential inspection runs under two hours from setup to findings review.
After the Camera: From Findings to a Plan
Findings sort into three broad paths. A sound line with minor root intrusion or light scale calls for maintenance: professional cleaning targeted at the exact joints the camera identified, plus a re-inspection interval. The footage becomes the baseline — the next inspection compares against it to see whether conditions are stable or worsening.
A line with isolated defects — one collapsed section, a single severe offset, a short run of deformed Orangeburg — is a candidate for spot repair or sectional trenchless lining. The camera's precise location data keeps the repair small: the crew digs or lines only the bad section instead of replacing the whole lateral. In Avenel's established subdivisions, where mature landscaping and driveways cover lateral paths, minimizing excavation has real value.
A line with systemic failure — roots at most joints, multiple offsets, widespread cracking — points toward full replacement, and here the camera has done its most valuable work: it has documented that spot repairs would be money wasted. For long laterals on Avenel's generous suburban lots, trenchless pipe bursting often makes sense, pulling a new seamless pipe through the old line's path with only entry and exit pits. The inspection recording lets every bidding contractor see the same evidence, which keeps quotes honest and comparable.
Local Insight
Avenel's mid-century subdivisions put its sewer laterals in the clay-tile-to-PVC transition era, and that is exactly what makes camera inspection decisive here. Area housing data shows a median home built around 1978 with many homes dating to the middle of the 20th century — the decades when clay tile gave way to early PVC, and when some 1950s-60s tracts may have received Orangeburg pipe. The camera is the only tool that identifies which material a given lateral actually is, where hybrid lines change from clay to PVC, and whether that suspect pipe is blistered Orangeburg that must be replaced rather than cleaned. Freeze-thaw winters work the joints of the area's clay tile year after year, while mature subdivision trees keep root pressure on every joint; the camera shows both in high resolution with exact footage locations. Around the Avenel station's transit-oriented development and the former industrial sites near the rail corridor, legacy utility runs can send laterals on unexpected paths — and the camera's sonde locator maps the true route before anyone digs. For Avenel, the inspection is less a troubleshooting step than a materials audit: it tells you what you own underground, and that knowledge drives every smarter decision after.
Talk to a Specialist
One call connects you with a local sewer professional serving Perth Amboy, NJ — day or night.
Talk to a Specialist: (833) 713-2101Frequently Asked Questions
Will a camera inspection damage my old clay lateral?
No. Inspection cameras are built to travel through fragile clay tile, Orangeburg, cast iron, and PVC without harming them. The camera head is small and smooth on a flexible push rod. If the line is fully collapsed, the camera stops at the collapse — which is itself valuable diagnostic information. A technician will never force the camera past a point where it could become stuck.
My line was snaked last year and is slow again. Is a camera worth it?
That pattern is exactly when a camera pays for itself. Repeat snaking treats symptoms — roots regrow through clay joints, scale reforms, bellies refill. The camera shows the underlying defect causing the recurrence, so your next dollar goes toward the actual fix instead of another temporary clearing. Many homeowners find the footage reframes the whole problem.
Can the camera tell clay pipe from Orangeburg or PVC?
Yes, and this is one of the inspection's most valuable functions in Avenel. Clay tile shows as rigid sections with visible joints; Orangeburg shows a distinctive blistered, deformed interior; PVC appears as smooth continuous pipe with occasional joints. The material identification often determines whether the line is maintainable or must be replaced.
How do I prepare for the inspection appointment?
Clear access to the cleanout, basement floor drain, or the bathroom where a toilet may be pulled. Avoid running large volumes of water right before the appointment if a backup is active — a surcharged line is harder to inspect. Beyond that, no preparation is needed; the technician brings all equipment and typically finishes in under two hours.
Should I inspect before replacing my driveway?
Yes. In Avenel's subdivisions, laterals commonly run beneath driveways. A camera inspection before concrete or paver work confirms the line's condition, so you are not tearing up a brand-new driveway two years later for a lateral replacement the camera would have predicted. The footage also documents the line's depth and path for the driveway contractor.
Does the inspection include a recording I can keep?
A proper inspection includes a video recording with footage markers and a findings summary. Keep it — it is the baseline for comparing future inspections, the evidence base for contractor quotes, and useful documentation for insurance or real-estate transactions. Ask the technician to confirm you will receive the recording before the work starts.
