Trenchless Pipe Lining in South Amboy, NJ

Railroad-Town Clay on the Bay: 80-100 Years Old

South Amboy's 1920s-40s housing stock carries clay-tile laterals now 80 to 100 years old — the bungalows, colonials, capes, and ranches that define the city's residential streets. The camera pattern is the advanced clay catalog: joints separated across the run, root masses at most joints, cracked sections, occasional offsets from a century of freeze-thaw and bay-area ground movement.

Cast-iron stacks in these homes are the same age and often the same condition — interior drainage that may need its own descaling assessment. The buried lateral is the lining target; the interior iron is a separate system. But the ages match, and a whole-house evaluation sometimes scopes both in the same service conversation.

What the camera typically confirms is the lining-favorable structure: vitrified segments sound, joints failed. Clay does not degrade chemically over a century; it fails mechanically at its connections. The liner replaces failed joint function with a continuous wall — the precise rehabilitation these 80-100-year-old pipes need.

The inspection also establishes the property's material era, because South Amboy's stock spans into modern PVC at the waterfront complexes. A 1925 bungalow and a 2022 apartment building need opposite evaluations — full rehabilitation versus defect-hunt — and the camera assigns each property correctly before any method is discussed.

Raritan Bay Storms: Surge, Infiltration, and the Watertight Answer

South Amboy's waterfront position on Raritan Bay, at the mouth of the Raritan River, brings documented storm-surge exposure — the Sandy-era storms are the reference event. For sewer laterals, surge and heavy rain attack through infiltration: elevated water pressing into every crack and open joint, filling laterals and surcharging the system during exactly the storms that stress everything else.

The failure pattern is storm-correlated: drainage degrading during bay storms and recovering after, backups timed to surge events, infiltration visible on camera as active water entry through joints. A century-old clay lateral with separated joints is hydraulically open to the bay's pressure — admitting water whenever storms raise the water table and surge levels.

A cured-in-place liner is the engineered answer because it is watertight and jointless. The continuous epoxy interior admits no water through the lined run; surge pressure that exploited dozens of joints meets an impermeable wall. Infiltration drops toward zero, the lateral carries its design flow, and the storm-correlated backup pattern resolves at the pipe rather than at the symptom.

The camera documents infiltration as the pre-lining baseline — weeping or flowing water at joints, worse after rain. That footage establishes the watertight liner as the targeted fix for an observed waterfront problem, and the next bay storm is the real-world proof that the seal holds.

Waterfront Apartments: The PVC Exception

South Amboy's newer waterfront apartment complexes — the Station Bay development, the Manhattan Beach Club redevelopment — run on modern PVC drainage that rarely needs lining. At a few years to a couple of decades old, PVC is nowhere near material failure; its issues are blockages, construction defects, or settlement, not aging pipe.

For these properties, the camera inspection is a defect hunt, not a rehabilitation assessment. Most inspections report sound pipe — and that honest finding is the correct outcome. Where the camera finds an isolated defect — a separated joint from settlement, a damaged section — sectional lining seals it trenchlessly without rehabilitating pipe that does not need it.

The contrast with the 1920s-40s stock is the point: same city, opposite evaluations. The bungalow's century-old clay gets full-run lining consideration; the new apartment's PVC gets a clean bill of health or a sectional repair. The inspection assigns each property to its category, and the method — or the decision that no method is needed — follows.

Property managers for the waterfront complexes should note the shared-system dimension: larger-diameter building sewers, manifolded configurations, and HOA or management-company responsibility structures. The inspection maps the configuration as well as the condition, since lining a shared building sewer affects all connected units and requires coordinated approval.

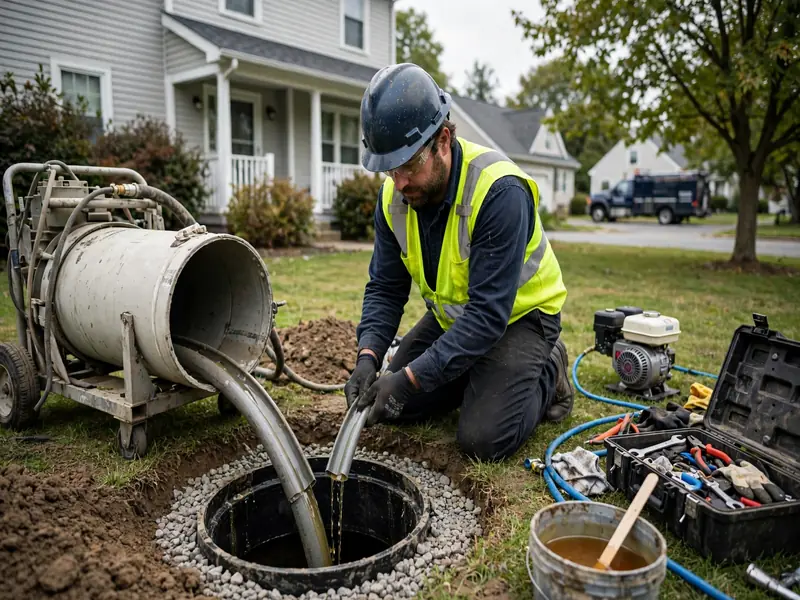

Installation: No Trench on the Waterfront

The project starts at the access point — an existing cleanout or a small established pit, the only ground disturbance. The camera survey runs the full lateral: material, diameter, length, defect map, infiltration documentation, municipal connection verification. On South Amboy's oldest lines, the technician screens for collapses behind root masses and documents every infiltration point the liner will seal.

Cleaning is thorough: mechanical root cutting through decades of colonization, then high-pressure jetting to scour the walls and flush debris. On infiltration-active lines, the channel must be fully clear so the liner seats against the host pipe at every joint — including the ones currently admitting bay water. The post-cleaning camera pass confirms readiness and finalizes measurements.

The liner installs by inversion or pull-in through the access point, seats under air or water pressure, and cures over several hours with the lateral out of service. Waterfront groundwater pressure during curing is managed under the installation protocol — internal seating pressure exceeds external water pressure, ensuring full contact and proper cure regardless of the water table.

Verification closes the job: final camera run showing the smooth, jointless, fully cured interior; ends trimmed and sealed; access restored. The before-and-after footage — infiltrating, root-choked clay beside the sealed new bore — documents both the waterfront problem and its trenchless resolution.

Freeze-Thaw Meets Storm Surge: The Dual Attack

South Amboy's clay laterals endure two distinct weathering attacks. Freeze-thaw cycles work the joints mechanically — winter heave walking each clay connection a fraction wider, year after year, decade after decade. It is the slow, relentless mechanism that opens joints for everything else to exploit.

Storm surge and heavy rain exploit the openings hydraulically — pressing water through the separated joints as infiltration, surcharging the lateral during bay storms. It is the episodic, dramatic mechanism that turns a deteriorated lateral into a backup during the worst weather.

Lining defeats both with the same jointless wall. Frost heave has no joints left to work open — the continuous liner does not separate at connections because it has no connections. Storm pressure has no joints left to penetrate — the watertight interior admits no water regardless of external hydraulic load. One installation removes both attack surfaces permanently.

The alternative — repeated clearing — addresses neither. Cutting roots does not close joints against frost or water; each winter opens them wider, each storm pushes more water through. For bay-exposed clay at 80-100 years, the dual attack is the argument for lining as the evaluated first option rather than the last resort after years of clearing cycles.

Limits on the Bay

Collapse is the hard boundary: where clay has caved — in saturated bayfront soils, under streets, at deep sections — no liner follows. The camera marks collapsed sections precisely; they become bursting or excavation targets, with waterfront dewatering planned into the dig.

Bellies disqualify by geometry: the liner preserves the pipe's shape, so settled low spots remain low, ponding water after lining as before. Bayfront ground settles, and the camera's waterline view shows bellies plainly. They need regrading by excavation or bursting, designed for the high water table.

Major offsets defeat lining where joints have sheared into large steps — a real risk after a century of frost heave and storm-driven ground movement. The footage measures each step against the pipe diameter; minor offsets bridge fine.

Modern PVC in good condition needs no lining — the inspection reports sound pipe honestly. And the system-level boundary: lining seals the lateral's own defects but cannot prevent a surcharged municipal main during bay storms from pushing back, nor surface flooding. The inspection distinguishes lateral infiltration, which lining eliminates, from main-driven backup — so the homeowner commits with a clear understanding of the repair's scope.
