Trenchless Pipe Lining in Port Reading, NJ

Railroad-Town Clay: A Century of Worker-Home Laterals

Port Reading's housing went up for railroad and coal-shipping workers: single-story and split-level homes from the 1910s-60s, Cape Cods, ranches, bungalows — with some homes dating to the early 1900s. Their clay-tile laterals are 60 to 120 years old, spanning the full range of clay aging from advanced joint failure to end-stage deterioration.

The camera pattern on the oldest lines is thorough: joints separated across the run, root masses at most joints, cracked sections, occasional offsets. The 1970s Project Bowtie rehabilitation touched 225 housing units, but lateral replacement was not necessarily part of that work — many original clay lines remain in service beneath rehabilitated homes. Age, not the home's appearance, determines the pipe's condition.

What the camera typically confirms is the lining-relevant distinction: segments sound, joints failed. Vitrified clay endures chemically for a century; its connections do not. That is the structural profile a cured liner rehabilitates — the new jointless wall replaces failed joint function along the entire run.

The inspection also watches for the railroad-era wildcard: legacy configurations from the neighborhood's industrial origins. Deep legacy lines, undocumented routings, and connections modified over a century of changes all appear on camera. Mapping the actual pipe — material, path, connection — precedes any lining plan, because the plan must fit the real infrastructure, not the assumed one.

Tidal Infiltration: The Waterfront Failure Mode

Inland laterals fail from roots and age. Port Reading's waterfront blocks add tidal infiltration: Arthur Kill storm surge and high groundwater pressing water into every crack and open joint. During nor'easters and heavy rain, the hydraulic pressure around a buried lateral rises, and a century-old clay line with separated joints admits water along its full length.

The symptom pattern is distinctive: drainage that deteriorates during storms and recovers after, backups correlated with tidal events, infiltration visible on camera as active water entry through joints. The lateral is not just old — it is leaking inward under pressure, filling with groundwater that the system must then carry as extra flow. Surcharging follows, and backups follow surcharging.

A cured-in-place liner is the direct countermeasure because it is watertight and jointless. One continuous epoxy interior replaces dozens of leaking joints; tidal pressure that exploited every gap now meets an impermeable wall. Infiltration drops toward zero, the lateral carries its design flow, and the wet-weather behavior that defines waterfront sewer problems improves at its source.

This is also why lining's value in Port Reading exceeds its value inland. Everywhere, lining seals roots and cracks. Here, it additionally seals the tidal infiltration pathway — addressing the failure mode the waterfront imposes. The camera documents active infiltration before lining, establishing that the watertight result targets an observed problem.

The Business Park Brownfield: Why Trenchless Fits

The Port Reading Business Park area is a brownfield redevelopment — remediated industrial ground where excavation carries soil-management considerations. For residential laterals near these zones, open-cut replacement can trigger complications no homeowner anticipates: soil characterization, disposal requirements, and coordination with remediation oversight.

Trenchless lining avoids the ground entirely. The liner installs through an access point and cures inside the existing pipe; no trench opens the remediated soils, no excavated material needs handling. The brownfield context, which complicates digging, is simply irrelevant to the trenchless installation. The project timeline stays at the standard one to two days regardless of what the soil contains.

Railroad parcels add a parallel consideration: legacy deep lines and the Reading Railroad's own infrastructure history. Excavation near railroad property involves its own clearance universe. Lining's inside-the-pipe work needs none of it — the method does not interact with the railroad's ground, only with the lateral's interior.

For Port Reading homeowners, this means the lining evaluation carries extra weight near industrial and railroad ground. Where the pipe qualifies, trenchless is not merely less disruptive — it avoids a category of project risk that open-cut cannot. The inspection confirms the pipe; the setting confirms the method's advantage.

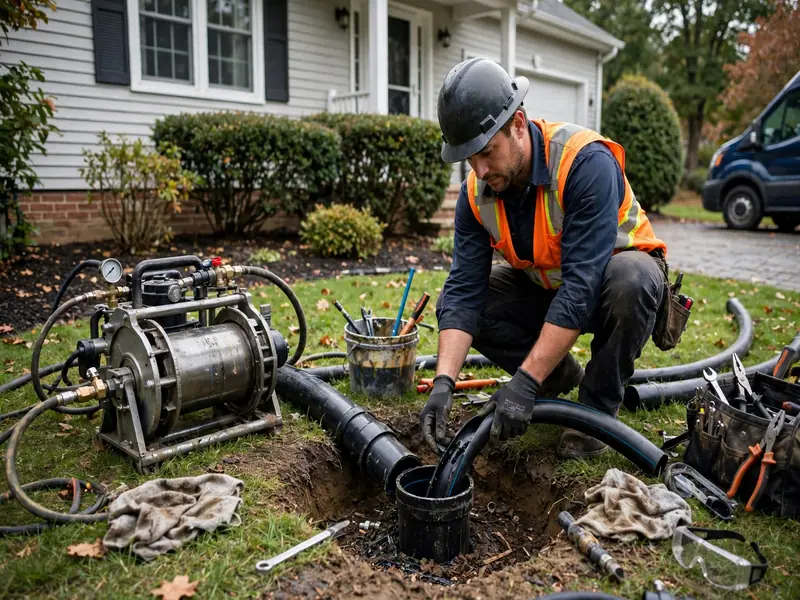

Installation: From Access Point to Watertight Cure

The project starts at the access point — an existing cleanout or a small established pit, the only ground disturbance involved. The camera survey runs the full lateral: material, diameter, length, defect map, infiltration documentation, municipal connection verification. On Port Reading's oldest lines, the technician screens for collapses hiding behind root masses and notes every infiltration point the watertight liner will seal.

Cleaning is thorough: mechanical root cutting through decades of colonization, then high-pressure jetting to scour the walls and flush debris. Infiltration-active lines get particular attention — the cleaning must clear the channel fully so the liner seats against the host pipe everywhere, including at the joints currently weeping water. The post-cleaning camera pass confirms readiness and finalizes measurements.

The liner installs by inversion or pull-in through the access point, seats under air or water pressure against the host interior, and cures over several hours — hot water, steam, or ambient chemistry. During the cure the lateral is out of service; the crew coordinates the window with the household. Groundwater pressure during curing is managed as part of the installation protocol on infiltration-active lines.

Verification closes the job: final camera run showing the smooth, jointless, fully cured interior; ends trimmed and sealed; access restored. The before-and-after footage documents both the original defects — roots, cracks, infiltration points — and the sealed new bore that replaced them.

Reading Waterfront Symptoms Correctly

Port Reading homeowners should learn the infiltration symptom pattern, because it points directly at lining candidacy. Storm-correlated drainage problems — fixtures slowing during heavy rain or tidal events, then recovering — indicate water entering the lateral through defective joints. This is distinct from constant slow drainage, which suggests blockage or structural restriction independent of weather.

Sewage odors near the waterfront, soggy ground along the lateral's path, and unusually lush vegetation can mark exfiltration — wastewater leaking outward — or infiltration zones. Either warrants camera inspection: the footage shows whether the pipe is admitting water, leaking water, or both, and where.

Recurring backups that follow clearing visits are the root-intrusion signal familiar everywhere: the clearing resets the symptom, the open joints guarantee recurrence. On century-old clay, this cycle is well established. Lining's jointless barrier ends it permanently — the only repair that addresses the entry points rather than the root masses.

Age-based inspection applies with waterfront urgency. A Port Reading home with an original early-1900s lateral and no inspection history carries both structural risk and infiltration risk. Finding a lineable pipe early preserves the trenchless option and seals the tidal pathway before the next storm season tests it.

Limits on the Waterfront

Collapse is the hard boundary: where century-old clay has caved, no liner follows. Waterfront blocks add a collapse accelerator — saturated soils and tidal pressure stress already-weakened pipe. The camera marks collapsed sections precisely; they become bursting or excavation targets, planned with the waterfront's dewatering and soil realities.

Bellies disqualify by geometry: a liner preserves the pipe's shape, so settled low spots remain low. Low-elevation waterfront ground settles, and the camera's waterline view shows bellies plainly. They need regrading by excavation or bursting — and in flood-prone blocks, the regrade must account for the high water table.

Major offsets defeat lining where joints have sheared into large steps. A century of ground movement plus waterfront soil dynamics can produce severe offsets; the footage measures each against the pipe diameter. Minor offsets bridge fine.

Legacy configuration complexity is Port Reading's special limit: railroad-era routings, possible undocumented connections, brownfield-adjacent parcels. Lining the wrong pipe or half of a shared configuration creates problems no method solves well. The inspection maps the real infrastructure first. And lining, for all its waterfront advantages, cannot fix municipal main surcharging or surface flooding — it seals the lateral's own defects, which is the portion of waterfront sewer risk the homeowner controls.
